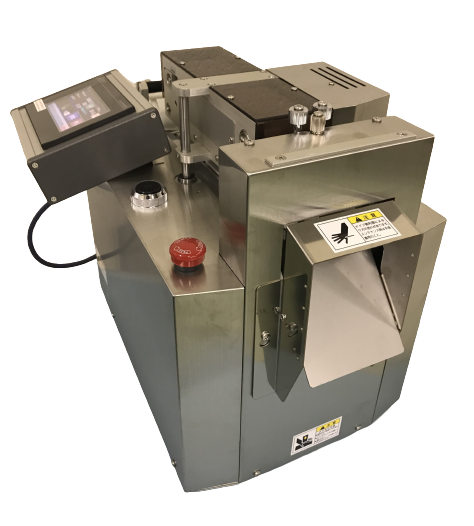

BFC-50  Belt-feed Tube Cutter


Suitable for variety of materials!

BFC-50 can be customized to meet your specific needs.







▪Applicable tube : O.D.30mm maximum



▪Belt-feed type realized the quality processing with rough tubes such as corrugated tubes.



▪The encoder system helps to prevent length inaccuracy.



▪Measures and cuts various works automatically.



▪The memory function realized smooth set-up and changeover.



▪Setting the number of tubes are being processed in advance, and notify you with an alarm when the process is completed.


Specification


Model BFC-50

Feed Speed

Max 900mm/sec.
Cutting Stroke 40mm  *Applicable work height: Approx.30mm
Applicable Work Size H:30mm  W:50mm
Cutting Length 0.1~99999mm
Power Supply Single phase  100V  50/60Hz  5A
Dimension D:440 × W:300 × H:400 mm  *Not including front guide and operation panel
Weight 18kg
