Automatic pull tester

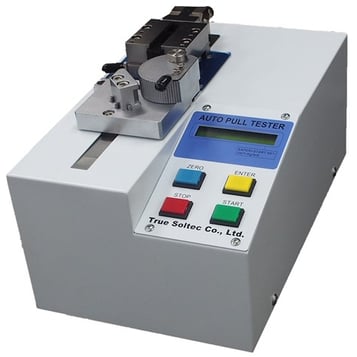

Automatic Pull Tester APT1000 / ATP500 / ATP250 | Inspection Equipment

This pull tester allows anybody to measure the pull force of crimped wire accurately!

➤The force of crimped wire with terminal is measured as the load at the time that a crimped terminal is disconnected from a wire or the stripped wire part can be broken.

▪Easy-to-use. For measurement, you have only to push the start button once. It stops automatically when it detects wire breakage.

▪The terminal clamper firmly holds various terminals: box type, tab type, pin type and others. The wedge-shaped structure allows you to set a terminal in the clamper easily, preventing the terminal from coming out of the clamper.

▪The terminal clamper opens to 8mm; the wire clamper opens to 5mm (it accommodates the wire thicknesses from AWG28 to AWG10).

▪Data monitoring and storage on PC is possible. Therefore you can accumulate history data.

▪Compact, small footprint

Specification

Model & Capacity	Model : APT 250 ➤ Capacity : 245N( 25 kg) Model : APT 500 ➤ Capacity : 490N( 50 kg) Model : APT1000 ➤ Capacity : 980N(100kg)
Speed Range (All model)	50 (25 to 50 mm/min) / 100 (50 to 100mm/min) / 200 (100 to 200mm/min)
Pull Stroke	48 mm
Resolution	0.1N
Measurement Unit	N / Kg / lb
Power Supply	AC100V-240V
Power Consumption	19.2W
Data Output	Analog voltage output, RS232C communication
Dimensions	W180 × D285 × H170 mm
Weight	Approx. 11kg
