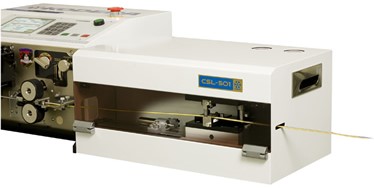

CSL-501, which has been developed as a special optional item only for C371AF, can make a slitting processing on the ends of flat cable. Maximum wire width is 18mm. Maximum combined slitting length at front and rear ends of cable is up to 200mm. The ratio of front and rear slitting lengths can be adjusted very simply and quickly. This is a automatic slitting machine intended to improve the comfortable performance of C371AF.
Model | CSL-501 |
Outer Dimensions | 500×325×230mm |
Weight | 20kg |
Power Supply | AC100V or 200V 50/60Hz single phase |
Power Consumption | 5W (AC100V) |
Max Slitting Length | 200mm |
Operational Pressure Range | 4~7kg/㎡ |
Max Wire Width | 18mm |
Drive | Air cylinder |
