Smoothly wire processing

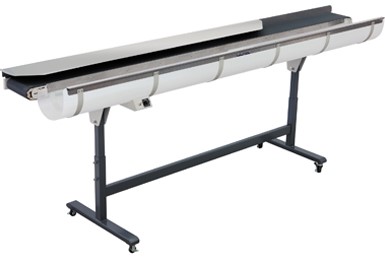

This is the belt conveyor to pass the processed wire smoothly to the next process. The conveyor's maximum speed is 4.5m/sec.
The length range is 250cm, 120cm, 45cm, and can be extended as per the needs.
Model | CC-120 | CC-250 | CC-400 |
Wire Length | Max : 1500mm | Max : 3000mm | Max : 4500mm |
Dimension | 1200×550×1165mm | 2500×550×1165mm | 4000×550×1165mm |
Weight | 39kg | 64kg | 131kg |
Power Supply | AC100 or 220V 50/60Hz | |
Power Consumption | Max : 120W |
