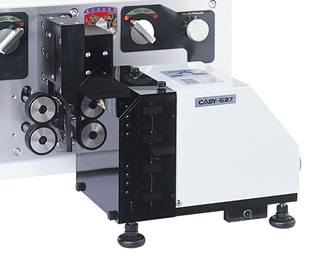

Latest wire twisting technology has been built into a compact body suitable for use with C370A.
Adjustment of the twisting force, switching of normal (Z twisting) and reverse (S twisting) and adjustment of twisting start position can be made by one-touch command operation.
Furthermore it can smoothly react to catch up with changes of wire thickness and/or feeding
speed by the micro computer control system. It is a truly speedy, quiet and precise twisting unit.
Model | CASY-637A |
Outer Dimensions | 〈CASY-637A〉 260×235×155mm |
〈CONTROL BOX〉 60×315×260mm | |
Weight | 〈CASY-637A〉 6.5kg |
〈CONTROL BOX〉 5.0kg | |
Power Supply | AC100V~240V 50/60Hz single phase |
Power Consumption | Max:70W (AC100V) |
Dimension | 1200×340×135mm |
Twisting Length | Front / Rear : Minimum 3mm |
Wire Size | AWG#14 (2sq)~#32 (0.03sq) *Depends on the wire type |
Drive | Stepping motor |
