Suitable for tube cutting such as shrink tube, PVC tube etc.
Easy to operate
The simple designed control panel helps you to use it very easily.

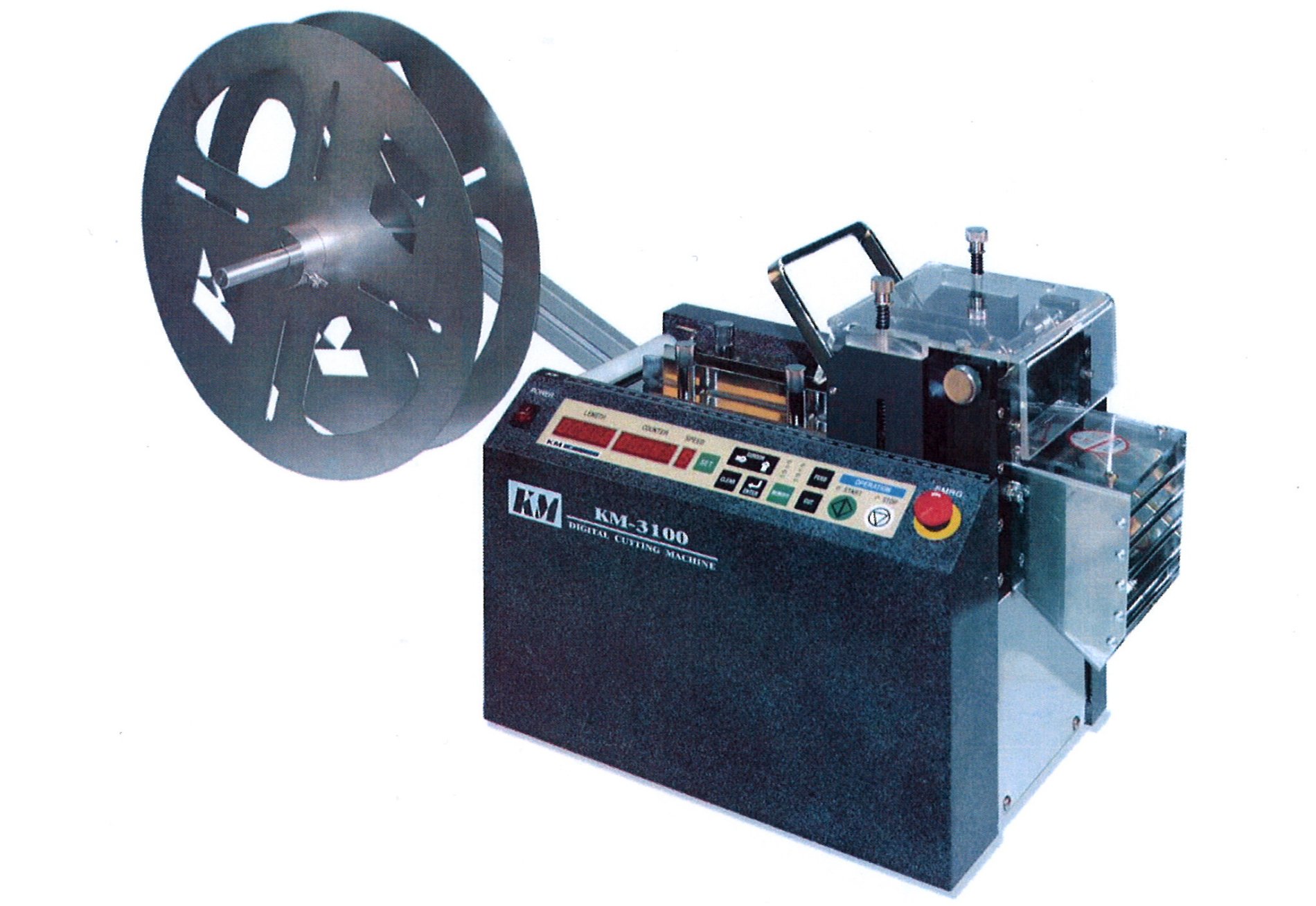

Reel stand is provided
The reel stand that can set bobbins up to a radius of 250 mm is built into the main body.
Optional equipment for removing static
The useful option would be a static remover COP-314. A cut material sticks to the cutting blade and it causes cutting errors sometimes. COP-314 will remove the static remaining between the blades and the material and minimize cutting errors over periods of extended use.
Static remover COP-314
Sample

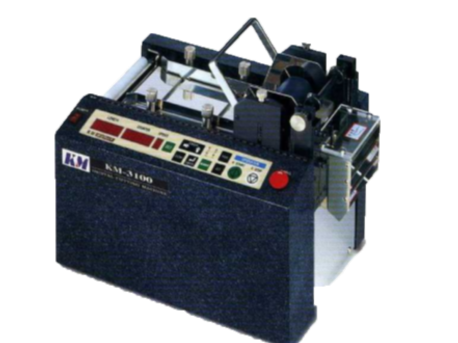

Model | KM-3100 | KM-3200 | KM-3300 | KM-3400 |
Cutting Width | 100mm | 200mm | 300mm | 400mm |
Cutting Material |
Shrink tube, Silicon tube, PVC tube, Hose, Rubber, Tin/Copper plate, Wire, Braided wire, Paper, Film, etc. |
|||
Cutting Length | 0.1 ~ 9,999.9mm | |||
Cutting pieces | 1 ~ 99,999pcs | |||
Power Supply | AC110V or 220V 50/60Hz | |||
Optional equipment | COP-314 Static-Remover | |||
Dimension | 395 x 265 x 355mm | 395 x 365 x 355mm | 410 x 500 x 345mm | 410 x 600 x 345mm |
Weight | 21kg | 25kg | 43kg | 47kg |
USHIYAMA DENKI CO.,LTD.
Pinefield Bldg. 9F, 3-40-7 Matsubara, Setagaya-Ku,
Tokyo, Japan 156-0043
TEL : +81-3-5355-6231
E-mail : web@ushiyama-global.com
