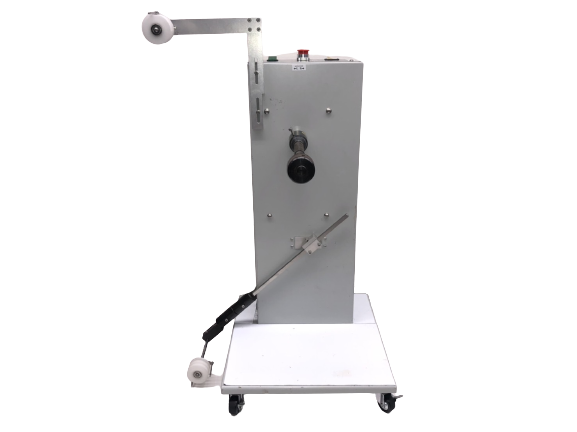

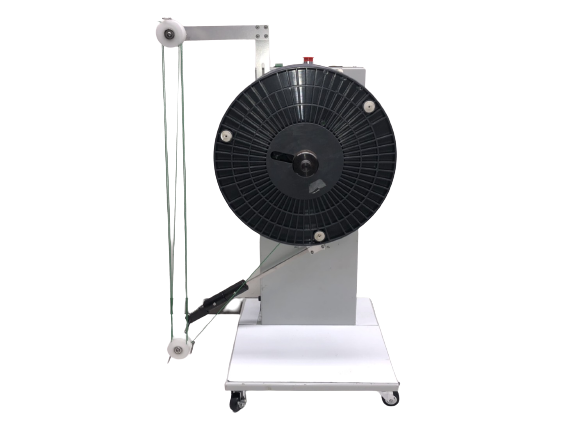

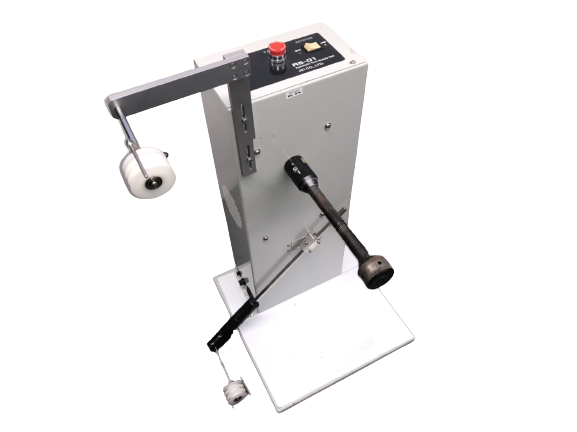

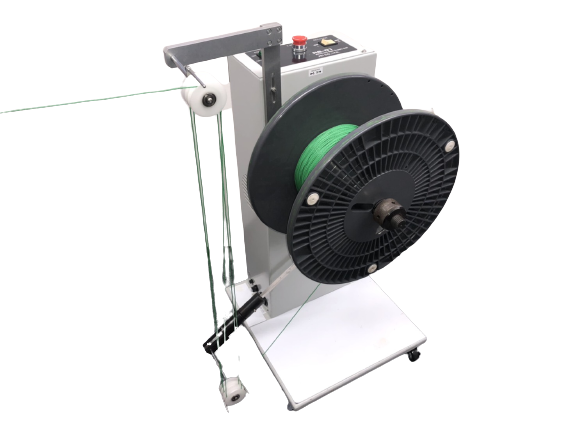

RS-01 can supply required amount of bobbin winded wires to any kinds of wire processing machines!
・Suitable for any machine.
・Bobbin winding wires can be taken out smoothly until the end without getting entangled.
・The accumulator (upper and lower pulleys) works for even long size processing.
・No need speed control adjustments.
・It can be used as a parallel line feeder with option installed.
Model | RS-01 |
Bobbin Wire Weight | Max 20kg |
Bobbin Wire Width | Max 200mm |
Bobbin Wire Diameter | Max φ400mm |
Bobbin Hole Diameter | φ20 ~ 40mm |
Feeding Speed | 1,700mm/sec *For bobbin with inner diameter 150φ |
Power Supply | AC100 or 200V 50/60Hz |
Dimension | 400 x 400 x 730 mm |
Weight | 28kg |
