Multi Tester MTP1 | Wire Harness Tester

Industry standard of the Harness Tester!

Functions:

▪Continuity Test

▪Momentary disconnection test

▪Low Resistance Test

▪Withstand voltage test

▪insulation resistance test

・Data management and control by PC.

・The Test conditions are set automatically.

・It gives stable voltage output without influence of a change of power supply by high voltage of DC－AC Inverter.

・It apply high voltage to every group by memorized data so it can test for a short time.

・It is the all-in-one type that contained all functions. It is a space-saving type too.

・It is checking disconnection and false wiring by searching a probe in a line of the opening side.

・The point is four types. And The expansion is possible by building more circuit board.

　(From 64p to 128p or 192p or 256p)

Test Points	64 points 128 points 192 points 256 points

Continuity	Continuity : Under 1 kohm Open : Over 3 kohm Voltage : DC5 V　2.2mA

Loose Contact	Detecting Pulse : 200 / 400 / 800 / 1000 / 200 / 3000 nSec

Withstanding Voltage	Voltage : AC50 to 1000 V Cut Off Current : 0.5 to 20 mA(Full Scale) Test Time : 0.1 to 99.9 sec Method : Auto / For Flat Cables / Scan / User Pattern

Insulation	Insulation Resistance : 2 to 1000 MOhm(Full Scale) Voltage : DC50 to 1000 V Test Time : 0.3 to 10.0 sec Method : Auto / For Flat Cables / Scan / User Pattern

Resistance	Voltage DC5V Resistance 1 to 100 Ohm Test Time 125ms per point

Safety Measures	Emergency Stop with Cut High Voltage Buzzer for high Voltage Test

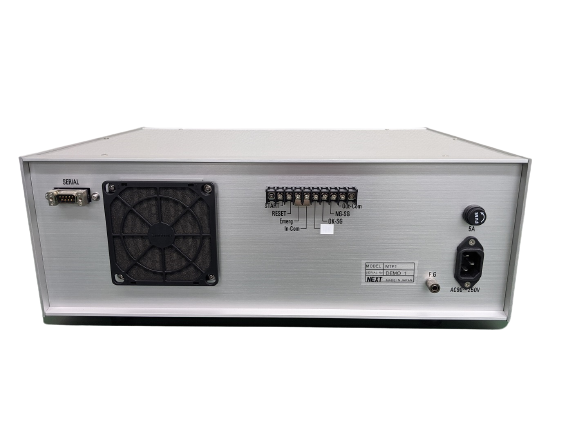

External I/O	Input : START / RESET / EMERGENCY / Output : PASS / FAIL /

Power Consumption	Maximum : 300 W (256 points)

Environment	Temperature : 10 to 40 degree Humidity : Under 75 %

Power	AC 85 to 264 V 50 / 60 Hz *An attached cable is for under AC 125 V use. For over 125 V use, please call us.

Size	W430 × D430 × H155 mm

Weight	64 points : 11.5kg 　128 points : 12.5kg　192 points : 13.5kg 　256 points : 14.5kg

Part and OS for communication	Port RS-232C (Serial Port) OS Windows XP or later When you use an optional serial printer, a serial port is necessary separately.
